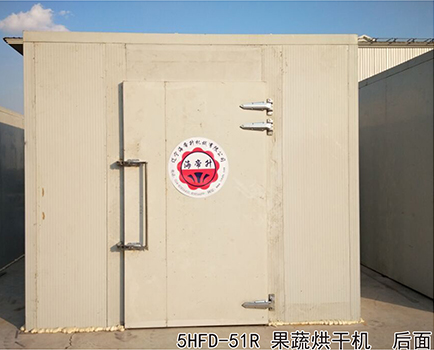

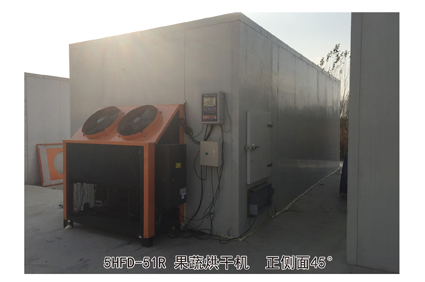

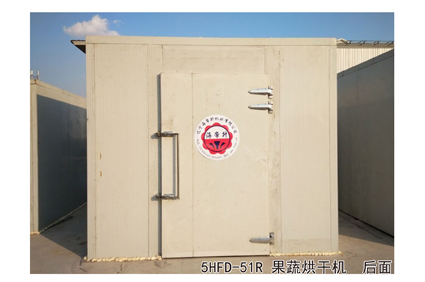

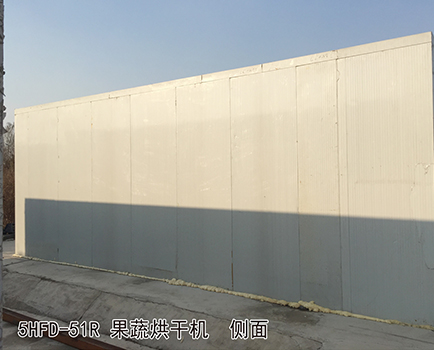

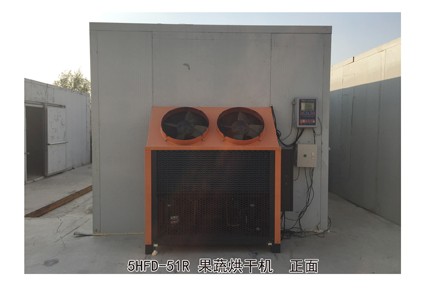

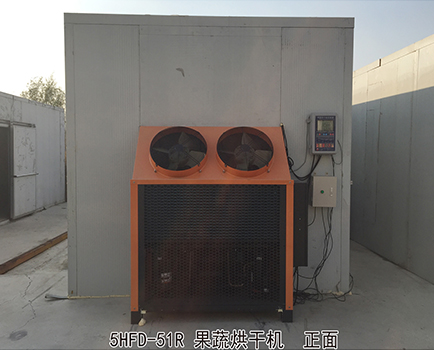

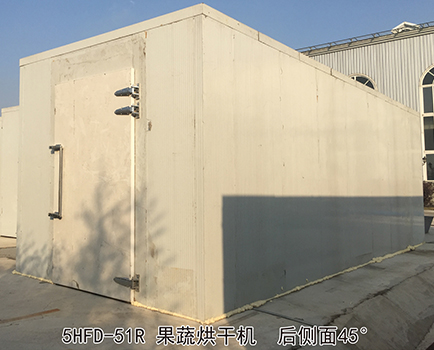

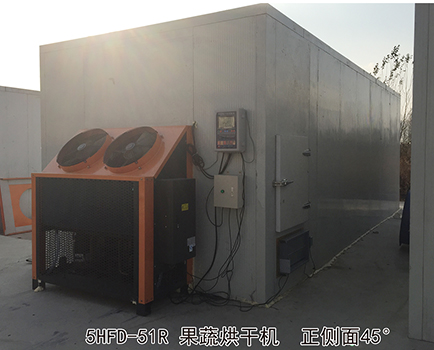

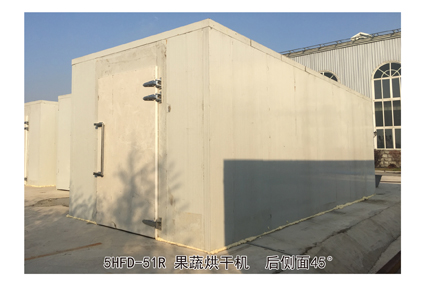

Product model：5HFD-51RHeat pump fruit and vegetable dryer

Release time：2017-05-17 Browse number：97people information sources：

National Agricultural Subsidy products

◆Excellent drying effect- HAIDISHENG!!

◆Professional drying: fruits, vegetables, edible fungi, traditional Chinese medicinal materials, marine products and other subsidiary agricultural products.

tel：024-85856600 85856699

Product introduction

5H series fruit and vegetable dryer is an automatic drying equipment researched and developed by our R&D staff with dedication based on summary and absorption of advanced technologies home and abroad.

Compared with the traditional dryer in China, the equipment has advantages of large material loading density, labor saving, fuel saving, stable temperature and humidity, high automation, easy operation and shorter drying time, etc. In the drying process, the heating is uniform. After dried, jujube has bright color, little and shallow wrinkle on the skin, strong elasticity, small color difference on the front and reverse sides as well as increased commercial grade, average price and economic benefit.

In addition to drying of jujube, 5H series fruit and vegetable dryer can be also used to dry multiple subsidiary agricultural products to enhance the economic value and increase the foreign exchange earning, such as vegetables, edible fungi, traditional Chinese medicinal materials, marine products, fresh fruits, grains and forage grass, etc. The equipment can be applied for multiple purposes, improving the utilization rate of dryer.

Application scope

Equipment features

Technical parameters

Item

Technical parameters

Model

5HFD-16R

5HFD-34R

5HFD-51R

Overall dimensions (length x width x height)(mm)

5200×2220×2475

6400×3200×2800

8400×3200×2800

Installation type

Plate type

Plate type

Plate type

Heating capacity of heat supply equipment

23kW

36kW

53.7kW

Allowable loading capacity (kg)

1000

2000

3000

Heating mode

heat pump

Motor power of circulating fan (Kw)

2.2

2.2

4.4

Rated power (Kw)

18（6+12）

23（11+12）

31（19+12）

Equipment voltage (V)

380±20%

Control method of temperature and humidity control equipmen

Manual/ automatic

Control accuracy of temperature and humidity control equipment (℃)

Dry bulb ±1, wet bulb ±1

Records query, recording capacity

Once every hour, recording for 500 h or 1000 h
